S47/S47A Sondex Plate heat exchangers for Milk/Juice Industry

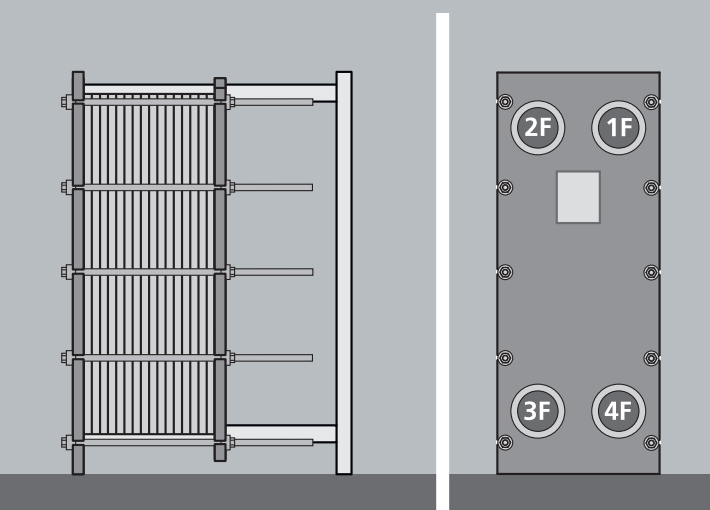

S47/S47A Plate Heat Exchanger Construction
| Frame | Plates | Gaskets |
- The heat exchanger consists of a frame plate(head), a pressure plate(follower), a carrying bar, a lower bar and a column. Tie(clamping) bolts are used to press the plate package together. The size and number is depending on the type of heat exchanger.
| - The plate package consists of plates with a groove along the rim of the plate and around the ports. The number of plates is, as well as size and dimension, dependant on the thermal output required. Depending on the application stainless steel or titanium plates might be used
| - The groove provided in the plates holds the special gasket. The purpose of this gasket is to prevent intermixing of the media and leakage to the outside. The gaskets are selected to suit the actual combination of temperature, chemical resistance and possible other conditions to be considered. They can be supplied in Viton, Nitrile or EPDM.
|
S47/S47A Model Plate Heat Exchanger Specification
| Surface Area | 0.47㎡ |
| Plate Theta Angle | 55 ° 115 ° |
| Connection Diameter | 100mm |
| Plate Corrugate Thickness | 2.6 mm |
| Plate Centre Length* Width | 1365*225 mm |
| Plate Shape Length*Width | 1518*380 mm |
S47/S47A Plate Heat Exchanger Technical Information
| Frame | - Painted frame
- Stainless steel frame, designed for the food and daily industry
- Both frames comes with clamping bolts placed around the frame edge.
|
| Design Pressure | - Painted frames: 1.0/1.5/2.5 Mpa. (145/217/362 PSI)
- Stainless steel frame: 1.0/1.6 Mpa (145/232 PSI)
|
| Intermediate Frames | - Intermediate frames and corner blocks in stainless steel.
|
| Connections | - DN150/6" flange in carbon steel, rubberlined or cladded with AISI 316 or titanium
- DN100/4", DN125/5" and DN150/6" dairy unions
- According to all known standards.
|
| Plate Material | - AISI304/316, 254 SMO and titanium.
- Other materials available on request.
|
| Gaskets | - The gasket is placed in the closed gasket groove, that is formed by the plates. This design makes the plate suitable for high working pressures. The plates are strongly guided during the assembly of the plate heat exchanger. Materials: NBR, EPDM and Viton.
- Other materials available on request.
|
| Extra Equipment | - Safety cover in stainless steel
- Insulating jacket
- Assembling spanner
- Foundation feet for common frame
- Instrument flange
- Thermometer and manometer
|

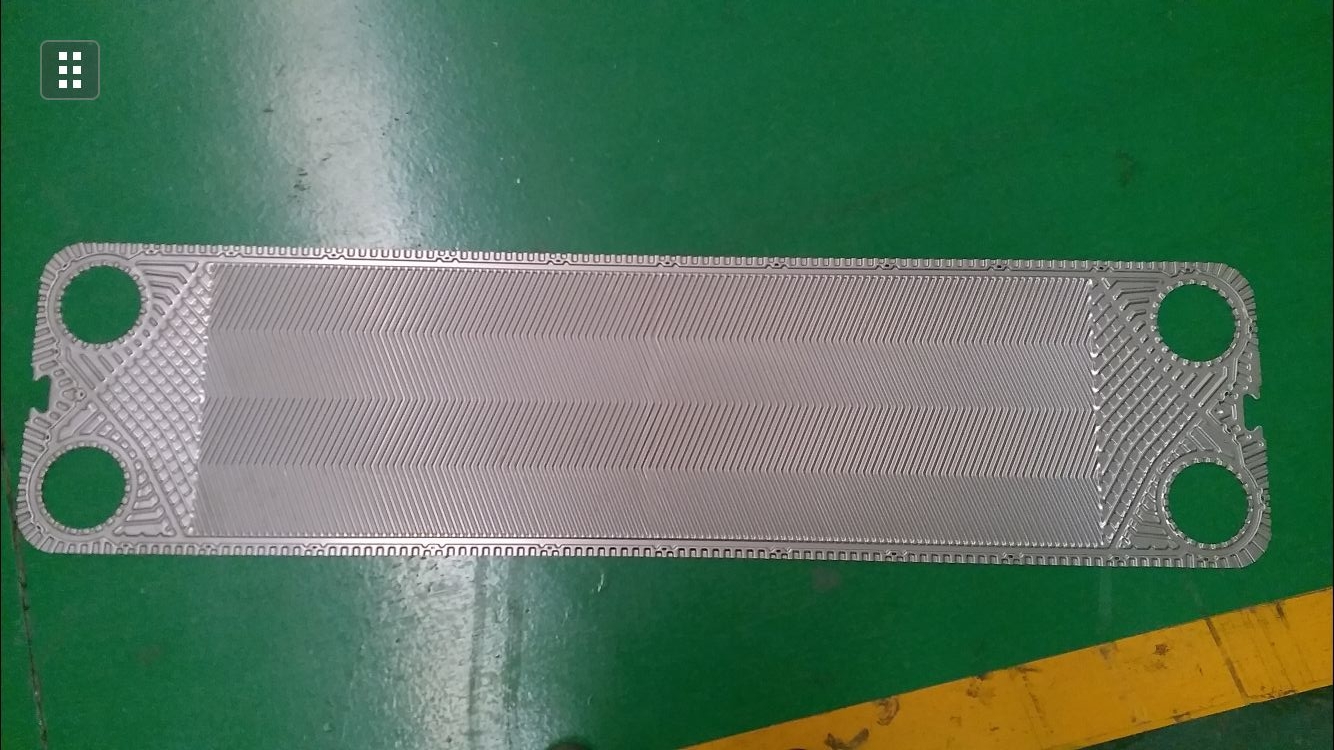

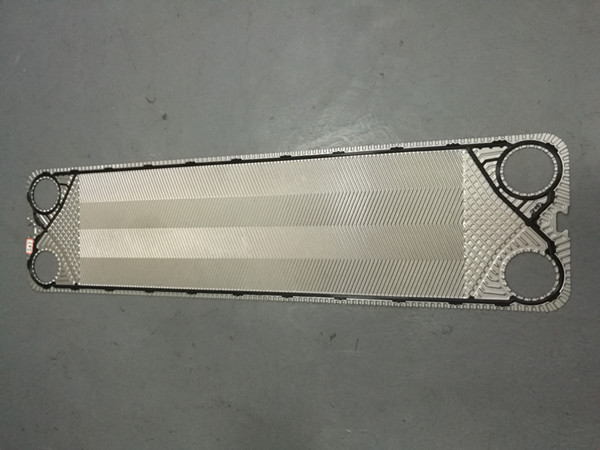

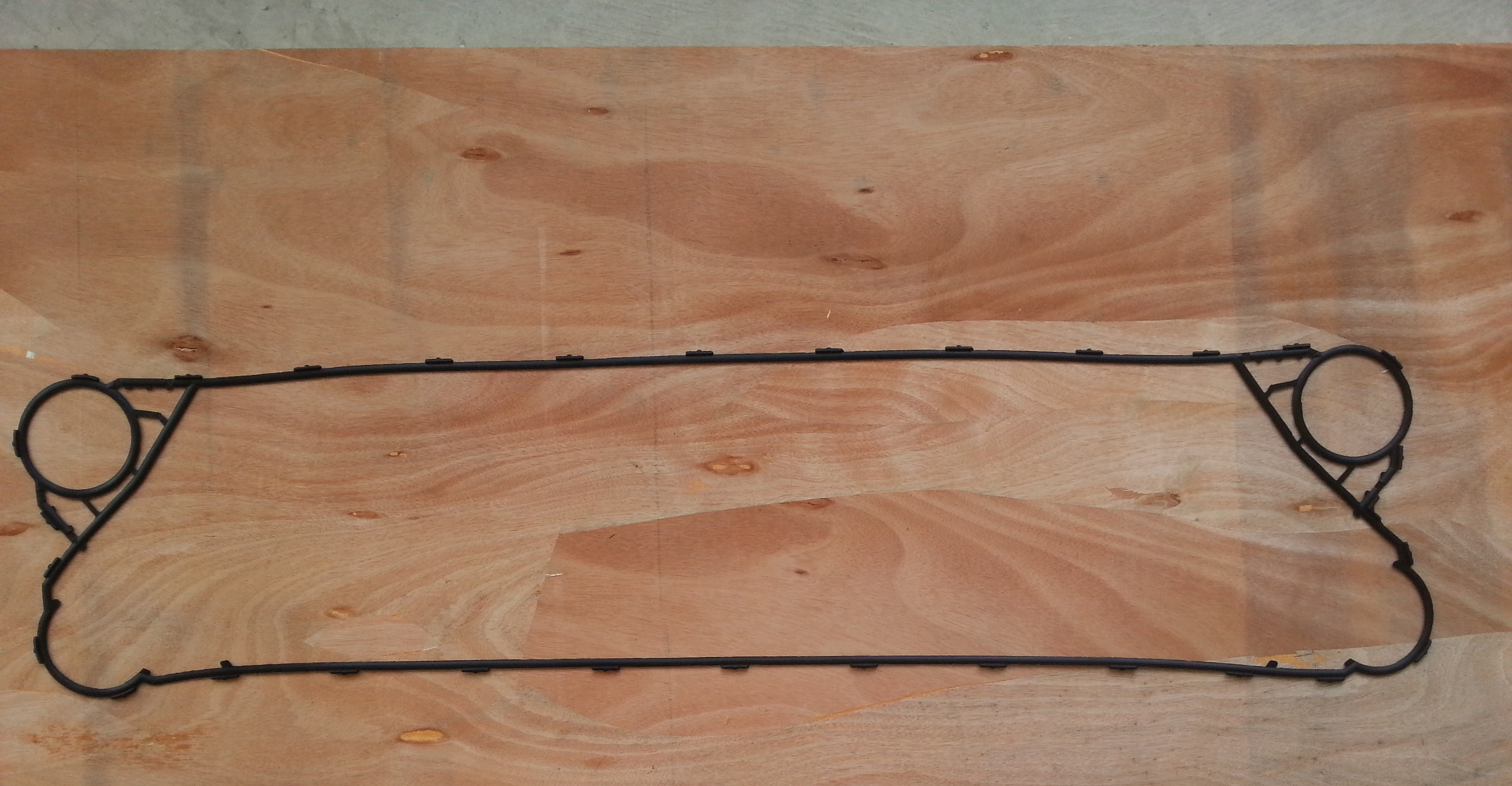

S47/S47A Plate Heat Exchanger Gasket & Plate Pictures

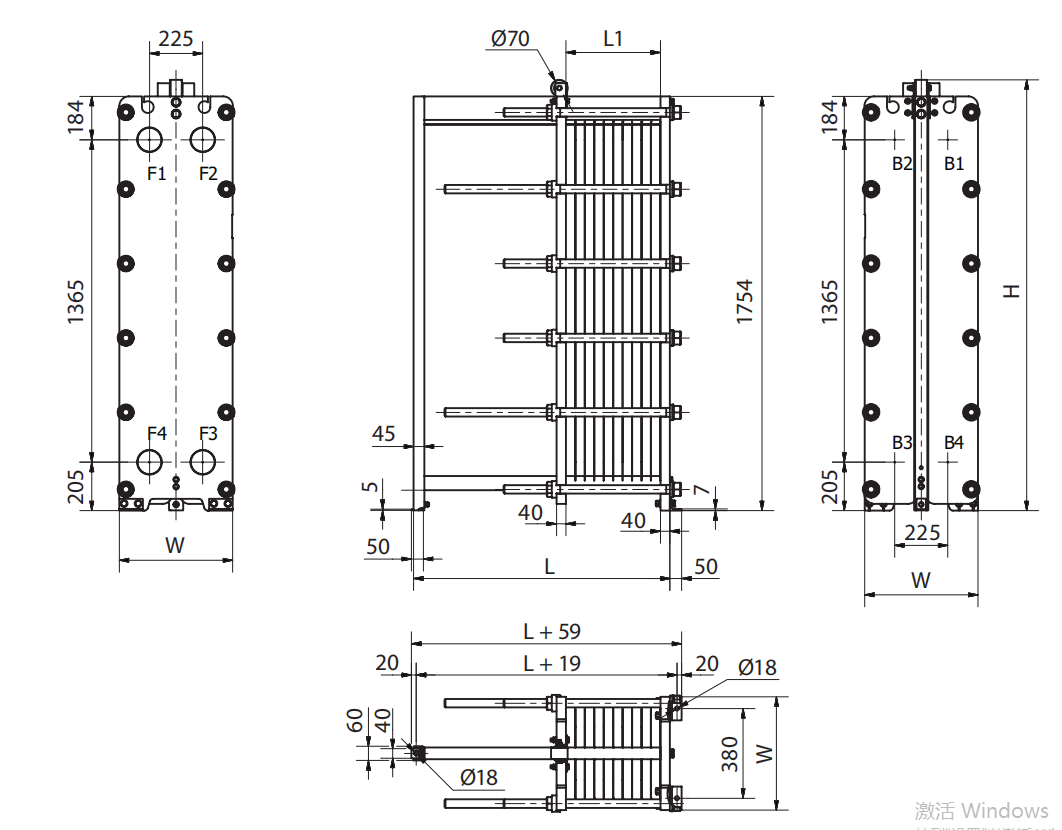

S47/S47A Frames
| Number of Plates | L(frame length)(mm) | W(mm) | H(mm) | Weigth max,empty(kg) | Connection type |
| S47 IS16 |
| 7-42 | 439 | 480(18.89") | 1715(67.52") | 529 | DN 100 flange or 4" |
| 43-60 | 539 | 581 |
| 61-79 | 639 | 634 |
| 80-151 | 1039 | 833 |
| S47 IS16 |
| 7-70 | 680 | 480(18.89") | 1823(71.78") | 862 | DN 100 flange or 4" |
| 71-142 | 1080 | 1091 |
| 143-197 | 1380 | 1265 |
| 198-233 | 1580 | 1379 |
| 234-324 | 2080 | 1668 |
| S47 IS25 |
| 7-67 | 685 | 480(18.89") | 1824(71.81") | 1088 | DN 100 flange or 4" |
| 68-139 | 1085 | 1350 |
| 140-192 | 1385 | 1545 |
| 193-228 | 1585 | 1676 |
| 229-317 | 2085 | 2001 |
PHE Plate Feature
| | FEATURE | ADVANTAGES | WHAT'S IN IT FOR YOU! |
| A | DISTRIBUTION AREA | Efficient Flow Distribution | - Prevents Mal-Distribution
|
| B | CORRUGATED PLATE PATTERN-HEAT TRANSFER AREA | Promotes Turbulence, Minimize Fouling | - Excellent heat recovery effect
- Maximize run time
|
| C | PLATE LOCKING SYSTEMS | "Corner lock" and " bubble lock" concepts ensure a stable and well aligned plate pack when the unit is closed | - Safe and economic operation
- High serviceability
- Minimum service downtime
|
| D | EASYCLIP GASKET SYSTEM | Bevelled gasket edges easily clip into place using your flingers Stays securely in place and provides high sealing integrity | - Reliable operation
- Easy and quick to replace
- No special tools needed
|
PHE Gasket Type
Please check their are three common model gasket type are aways used in Sondex brand.
PHE Technical Information
Frame
- Painted frame, colour RAL 5010 (available in other colours)
- Stainless steel frame, designed for the ffod and dairy industry.
Both frames comes with clamping bolts placed around the frame edge.
Design Pressure
- Pained frames:1.0/1.6/2.5 MPa. (145/232/362 PSI)
- Stainless steel frame: 1.0/1.6 MPa.(145/232 PSI)
Intermediate Frames
Intermediate frames and corner blocks for IS and FS frames in stainless steel.
Contruction Standard
- EN13445(PED 2014/68/EU)
- ASME sec VIII, Div.1
Connections
- DN100/4" flange in carbon steel, rubber lined or cladded with AISI 316 or titanium.
- DN80/3" and DN100/4" Dairy unions.
According to all known standards.
Plate Material
AISI 304/316, 254 SMO and titanium. Also 2*0.4mm “Sonder Safe" plates, for food and industry.
Other materials available on request.
Gaskets
The gasket is the unique non-glued "Sonder lock" gasket wich locks the plates together with strong rubber buttons, so that the plates are strongly guided during the assembly of the plate heat exchanger.
Materials: NBR,EPDM and Viton.
Other material available on request.
Extra Equipment
- Safety cover in stainless steel
- Insulating jacket
- Assembling spanner
- Foundation feet
- Instrument flange
- Thermometer and manometer
PHE Problem Solving
If you have problems with your plate type heat exchanger, in most cases these can be solved by your own personnel. Please find below a summary of possible problems as well as possible causes and solutions.
A condition for the continuous proper functioning of your plate type heat exchanger is in strict compliance with the permissible values for pressure and temperature mentioned on the name plate.
Exceeding these values, even as a short-lasting pressure peaks will cause damage to the unit and be the cause of problems.
To avoid costly repairs, we advise you to have the installation work and maintenance carried out by properly trained personnel. You can also contact us.
| Problem | Possible Cause | Possible Solution |
| Leakage | At the connections | - Check the rubber liners (if fitted)
- Check the flange gasket(if fitted)
- Check the O-ring
- Fit the pipes tension-free
|
| Mixing of primary and secondary circuit | - Check the plates for holes and/or cracks
|
| In plate package | - Check the assembly
- Check the condition of the gaskets
- Check the proper position of the gasket
|
| The operating Conditions deviate from the specification | - Adjust the operating conditions
|
| Insufficient Capacity | Air in the system | - De-aerate the pipe system
- Check the pipe work for possible air traps
|
| The operating conditions deviate from the specification | - Adjust the operating conditions
|
| The heat exchanger is dirty | |
| The connections have been interchanged | |
| Too high pressure drop | Flow large the design flow | |
| Channels in plate(s) blocked | |
| Incorrect measurements | - Check the pressure indicator
|
| Medium deviating from the design | - Addition of for instance anti-freeze will increase the pressure drop
|
| Air in the system | - De-aerate the pipe system
- Check the pipe work for possible air traps
|
Plate Heat Exchanger Pictures
